IMMEDIATELY AVAILABLE

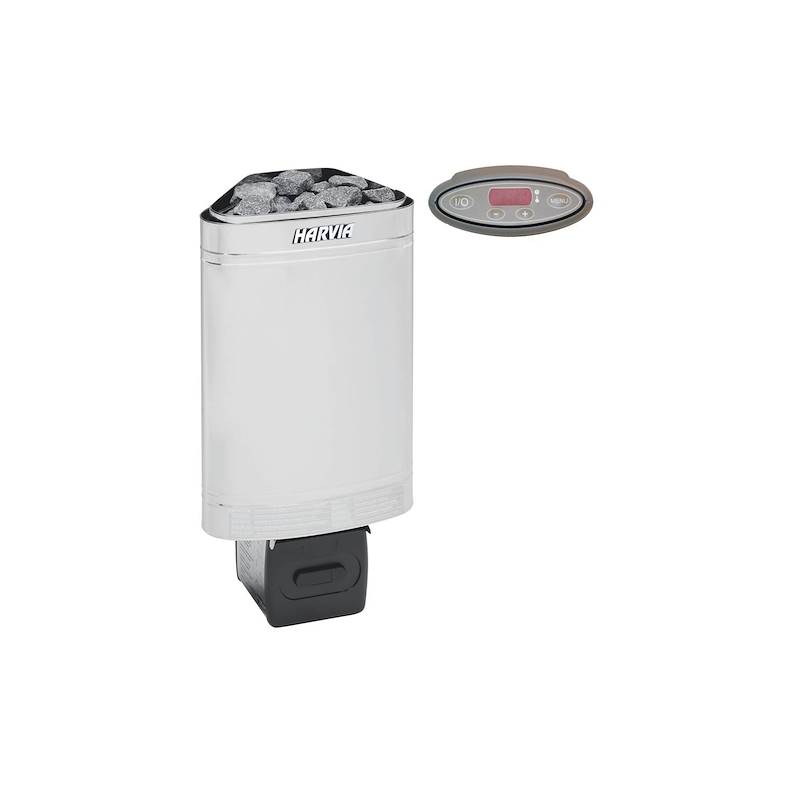

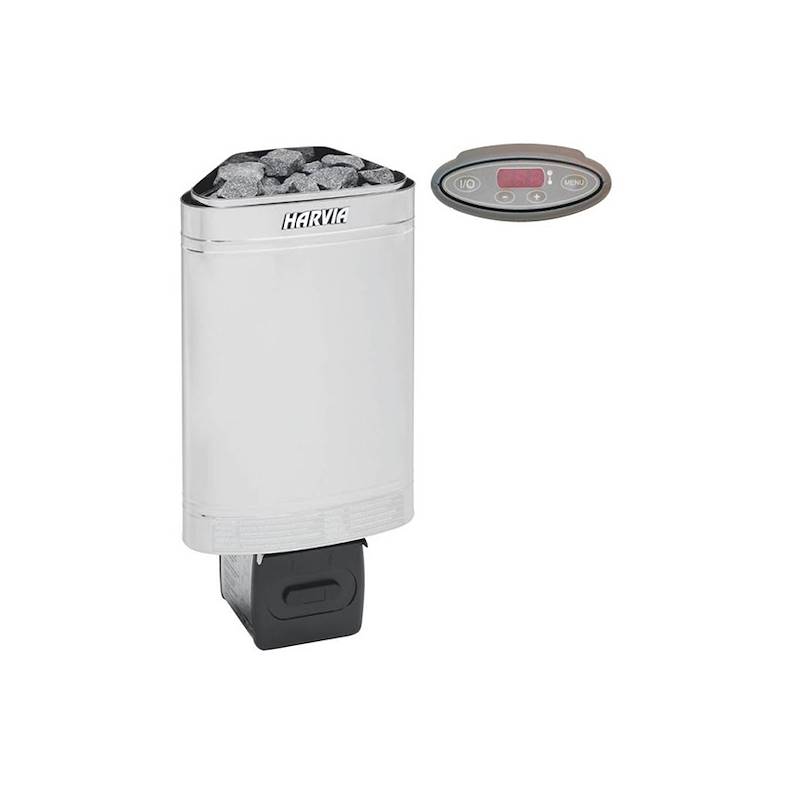

HARVIA heater > DELTA EE
(electric sauna heater made in Finland)
Small on the outside, big on the inside.
HARVIA mod.
Delta EE is a powerful package for a small sauna. It is a compact and efficient heater with a large stone space. The stainless outer casing of the heater gives your sauna a modern look. The triangular design allows
Delta EE to be installed in a corner, improving the efficiency of space utilisation in the sauna.
The heater is easy to mount on the separate mounting rack included in the delivery.

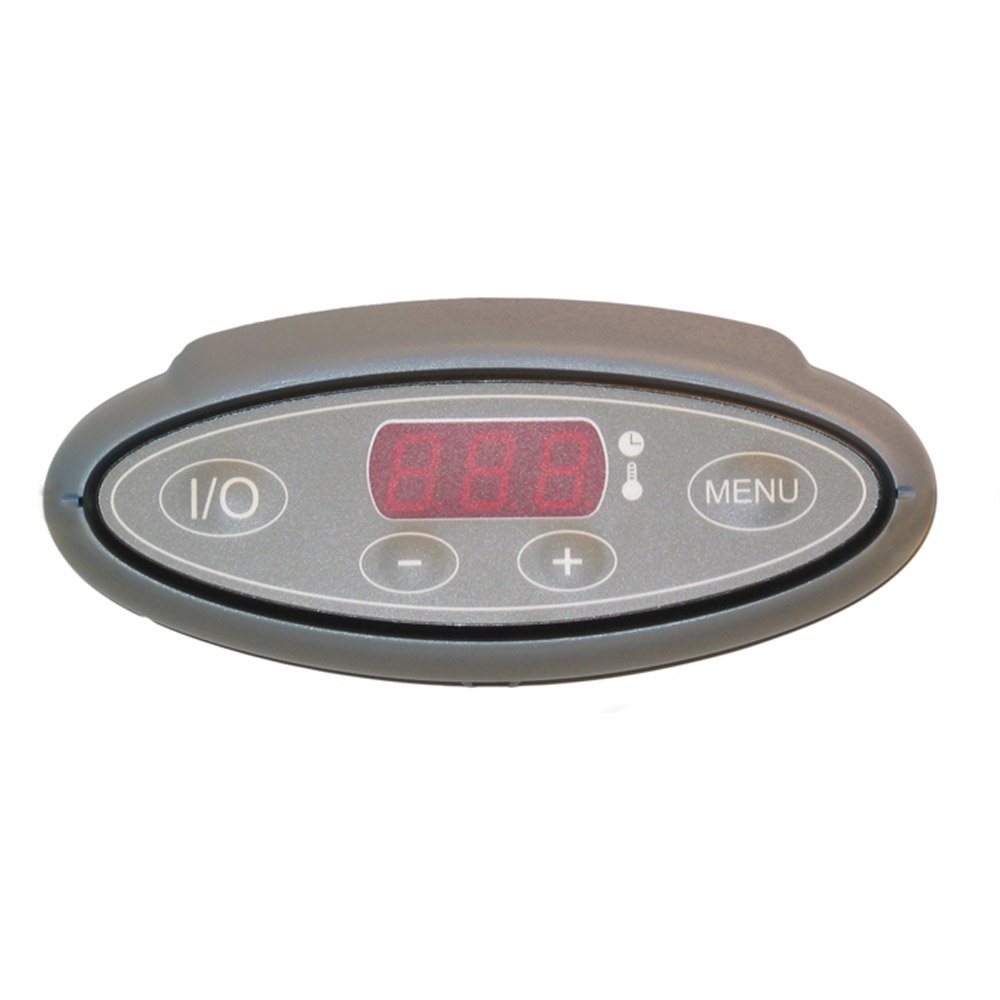

The Delta EE model is equipped with an illuminated digital control panel (splash-proof) which makes the heater easy to use.
The operating time can be chosen between 2 and 8 hours, the factory setting is four hours.
The pre-setting time range is between 0 and 18 hours.
For PRIVATE and COMMERCIAL saunas
The supply includes:
- Heater HARVIA mod. Delta EE - STEEL.
- Splash-proof, digital control panel with flange for wall mounting.
- 3 meters data cable with easy plug connection (5 m or 10 m as options).

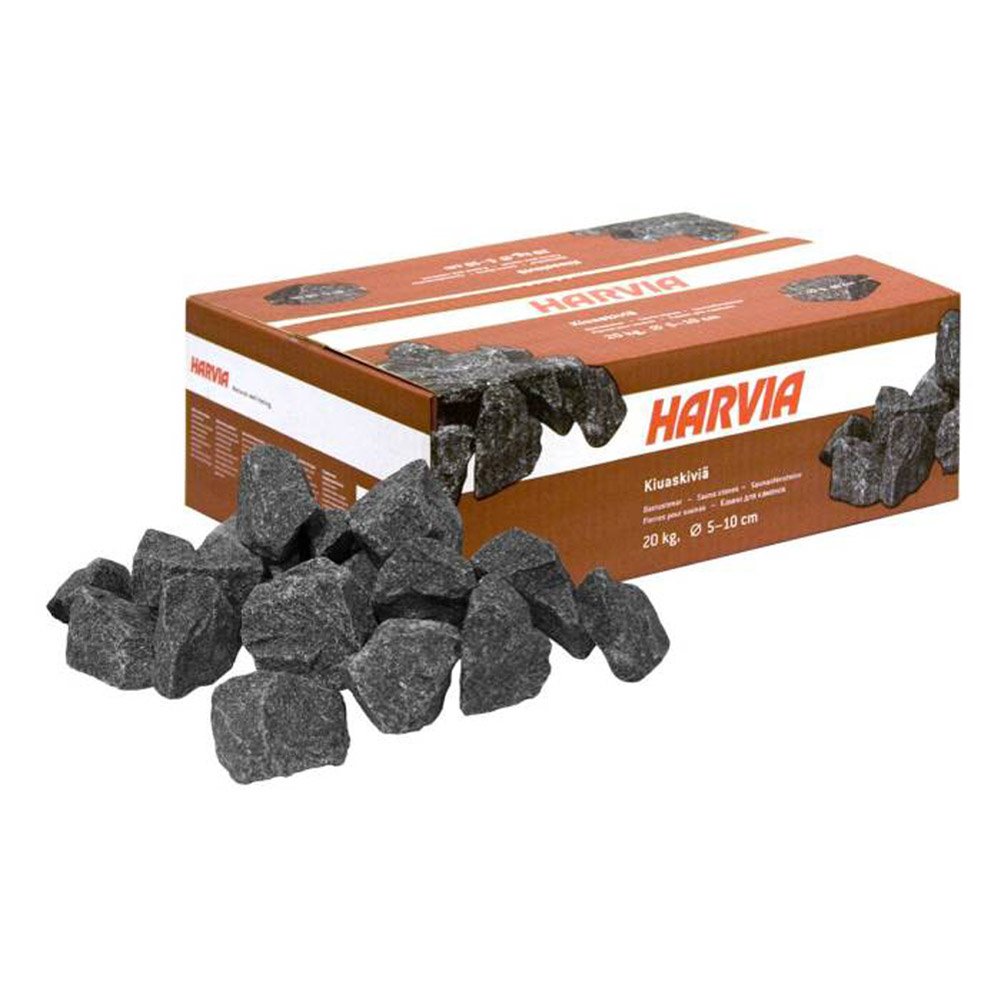

- 11 Kg. sauna stones.
- Temperature sensor and overheating limiter.
- Wooden connection cable covering ledges.
- Instructions for installation ad use of electric sauna heater.
- CE Certification of Conformity.
Technical data:
Heater
model |
Power
Kw. |
Electric
rate |
Reccomended
sauna room size
min. > max. |
Sauna room
heigh
min. (mm) |
Heater dimensions (mm)
and weight (empty - Kg.) |
Stone capacity
max (Kg.) |
| D23EE |
2.3 Kw |
230/400V |
1.3 - 2.5 m3 |
1700 |
L. 340 x W. 200 x H. 635 - 8 Kg. |
11 Kg. |
| D29EE |
2.9 Kw |
230/400V |
2.0 - 4.0 m3 |
1700 |
L. 340 x W. 200 x H. 635 - 8 Kg. |
11 Kg. |
| D36EE |
3.6 Kw |
230/400V |
2.0 - 4.5 m3 |
1700 |
L. 340 x W. 200 x H. 635 - 8 Kg. |
11 Kg. |
