Steel chimney

IMMEDIATELY AVAILABLE

Woodburning stove accessories > WHP1500
(100% Harvia genuine spare-parts)

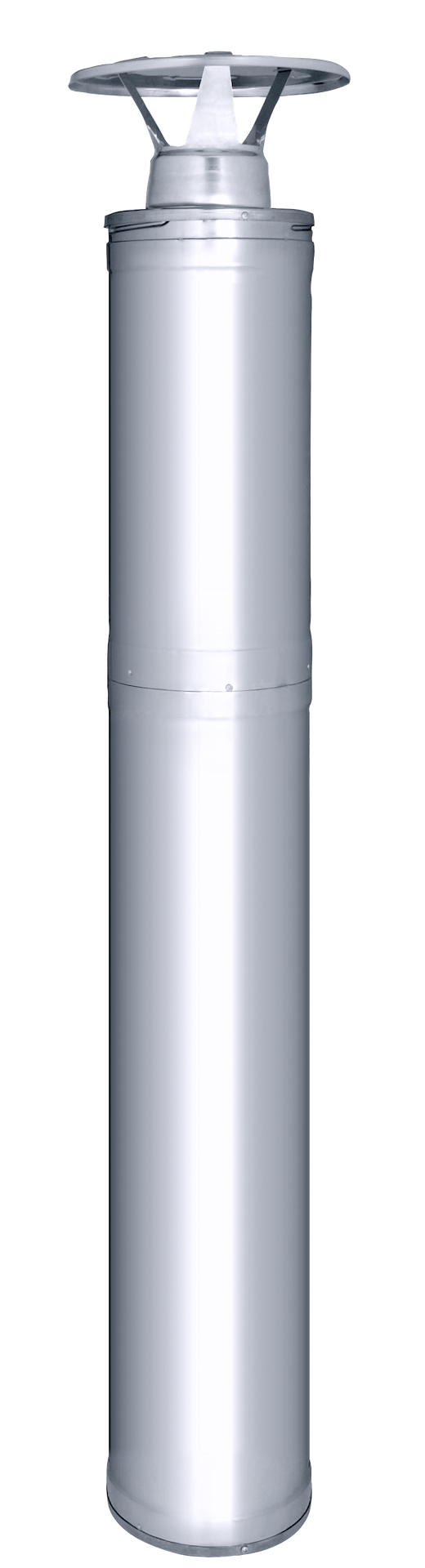

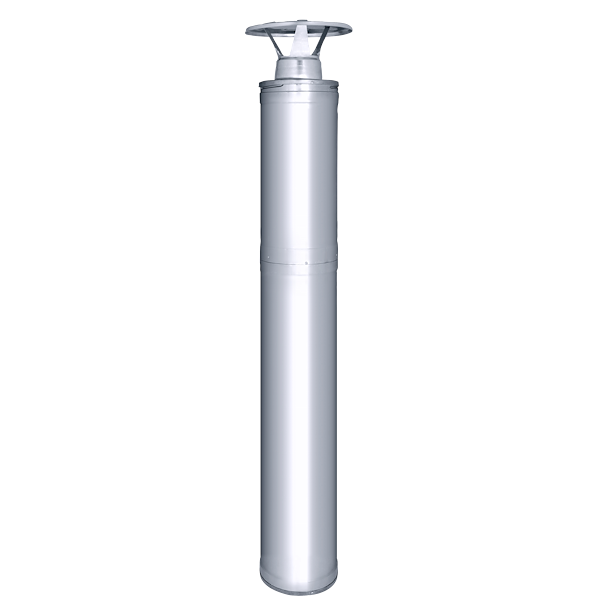

Steel chimney – A stylish chimney solution.
The HARVIA steel chimney is an easy to install stylish chimney solution. The steel chimney withstands extensive changes in temperature and has mainly been designed for use with woodburning stoves, smaller fireplaces, and iron stoves in detached sauna buildings. Since the outer casing and inner tube are made out of stainless steel, the product is durable and maintains its appearance.

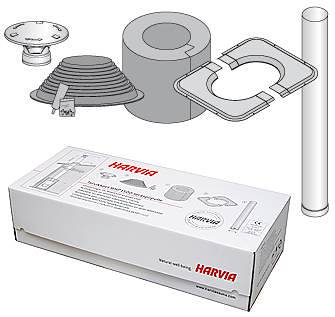

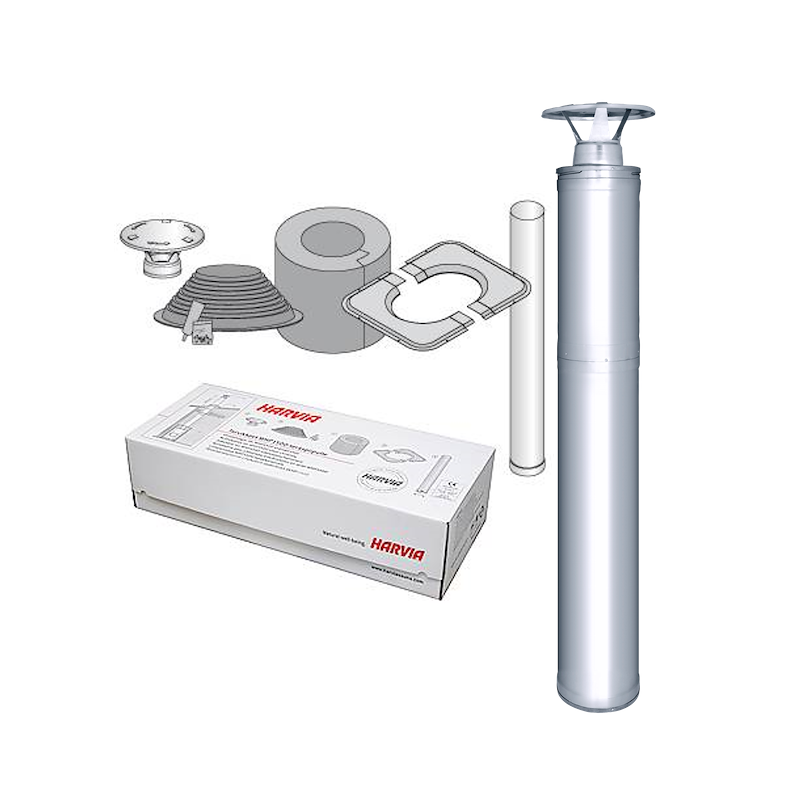

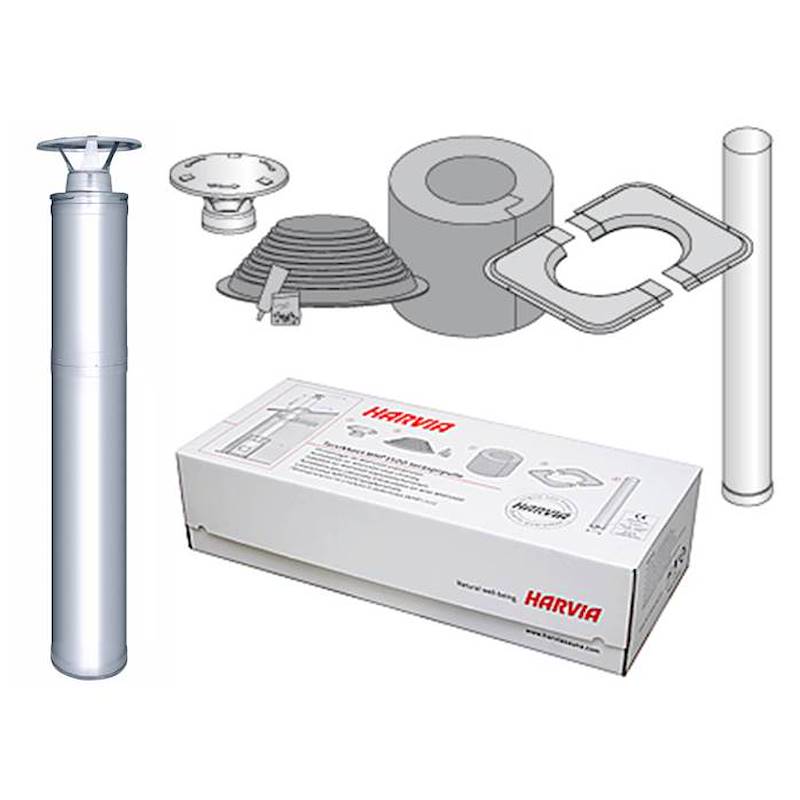

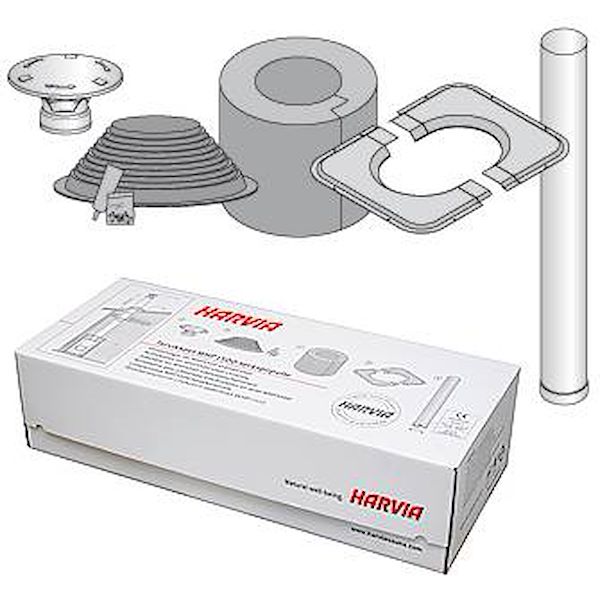

The standard delivery of the steel chimney includes:
  • 1.5 m Isolated steel chimney (WHP1500).
  • Non-isolated smoke tube 1.0 m stainless steel (WZ100ST).

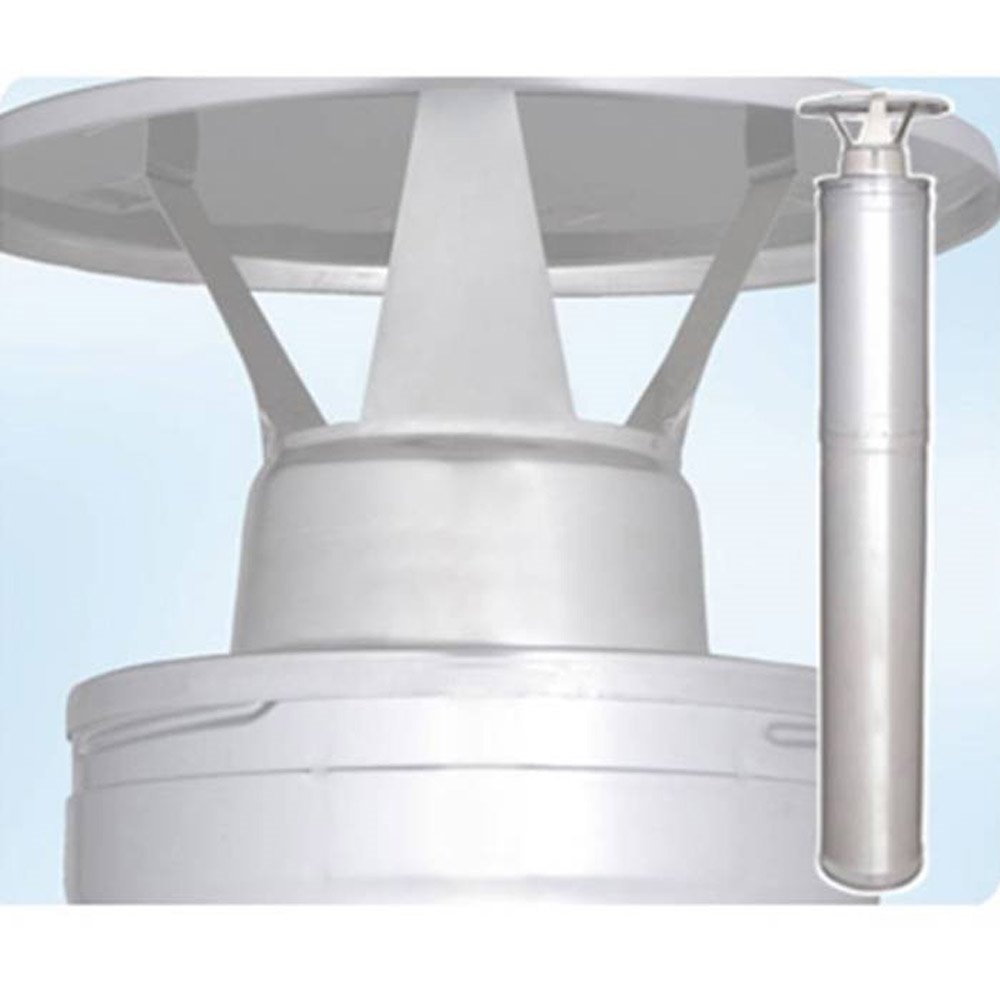

  • Rain cap.
  • Rubber rain flange.

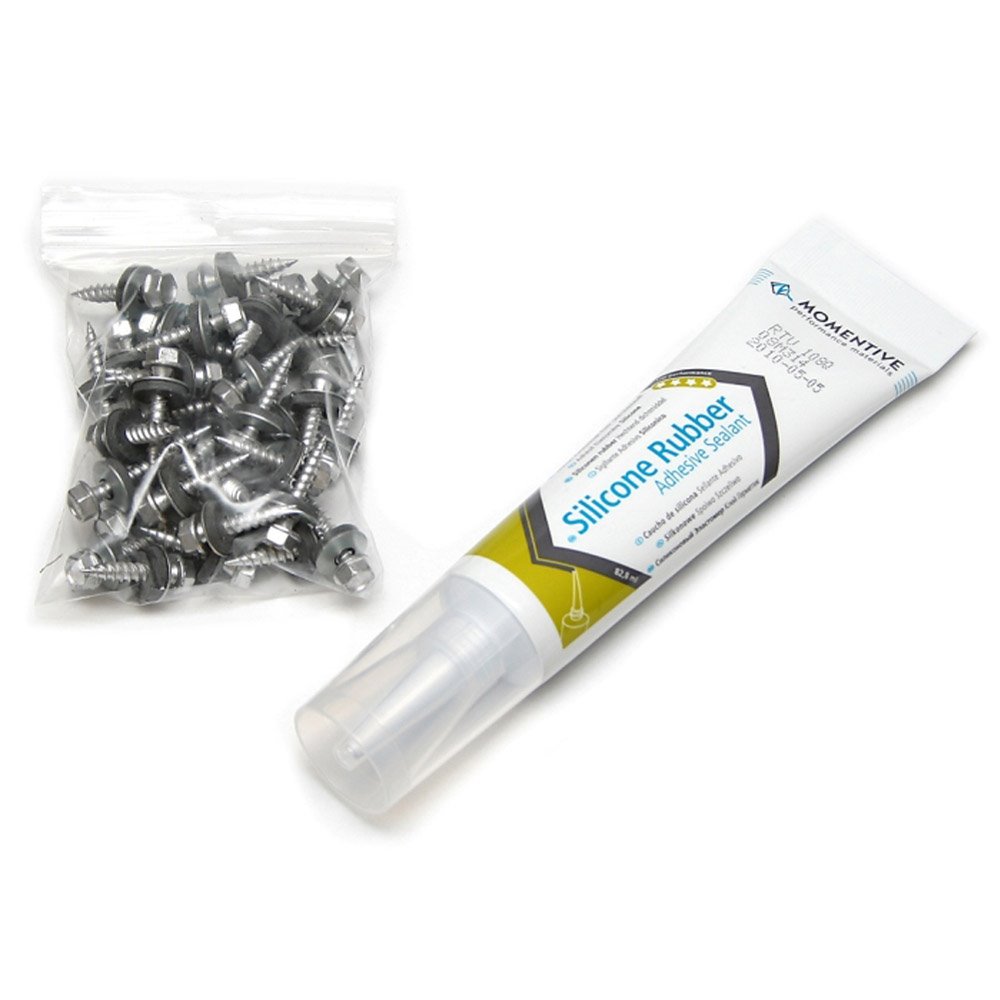

  • Mounting set for rain flange.
  • Stainless steel lead-through flange for the ceiling.

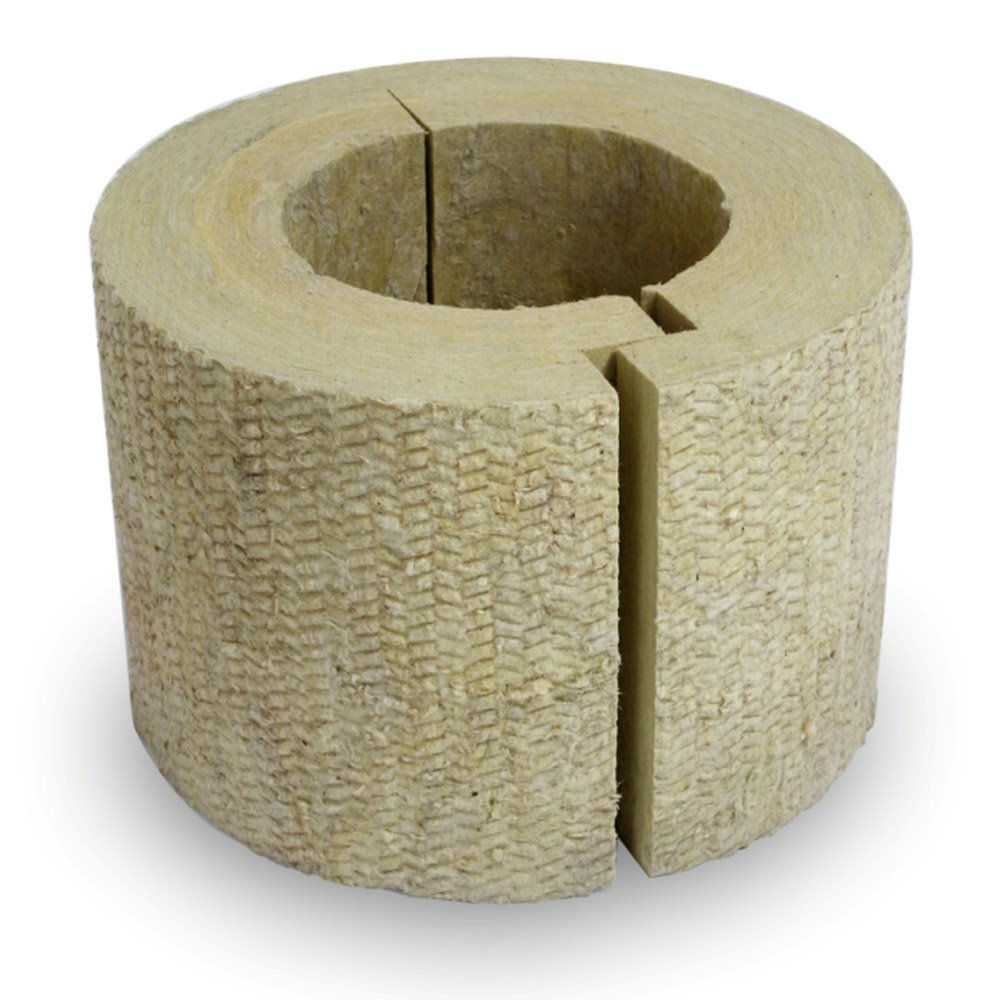

  • Lead-through insulation (XX101) when insulating the steel chimney lead-through. The product is non-flammable.
  • Confirm the regulations with your local fire inspector. The lead-through insulation is available in 300 mm pieces.

Supplementary parts of 0.5 m (WHP500) and 1.0 m (WHP1000) are available as accessories for this stainless steel chimney. Thanks to an ingenious mechanism, the supplementary parts are wound together and the smoke pipes are also equipped with slots to lock them together. This prevents movement caused by temperature changes. Indoors, the chimney can be installed up to a height of 3 meters without support and outdoors the corresponding self-supported installation height is 2 m.

The rated maximum temperature of combus­tion gases for a furnace connected to a steel chimney is 600 ºC. The external diameter of the steel chimney is 220 mm and the diameter of the smoke pipe is 115 mm. The safety distance to inflammable materials is 100 mm. The HARVIA steel chimney has been awarded with a CE-marking, so the product complies with all international fire- and operational safety requirements. The steel chimney is sootfire proof. The HARVIA wide product range also includes smoke and angle pipes for various mounting solutions. Smoke pipes made of painted or stainless steel are available for all HARVIA woodburning products (except for flare smoker).


Download in pdf the drawing about the smoke outlet.
