Sauna electric heaters
Harvia

Electric sauna heater Hidden Heater

mod. HH9 (9,0 Kw. - 400V) - 20 Kg. sauna stones and soapstone bowl included ATTENTION: control not included (Harvia ref. C150 or Griffin CG170)

HARVIA HIDDEN HEATER
Sauna electric heater
Heater behind the bench

cod. HH9-524
Prompt delivery
Request information
Electric sauna heater Hidden Heater
Description
Download
Alternative products
AVAILABLE IN 10/12 WORKING DAYS

HARVIA heater > HIDDEN HEATER
(electric sauna heater made in Finland)

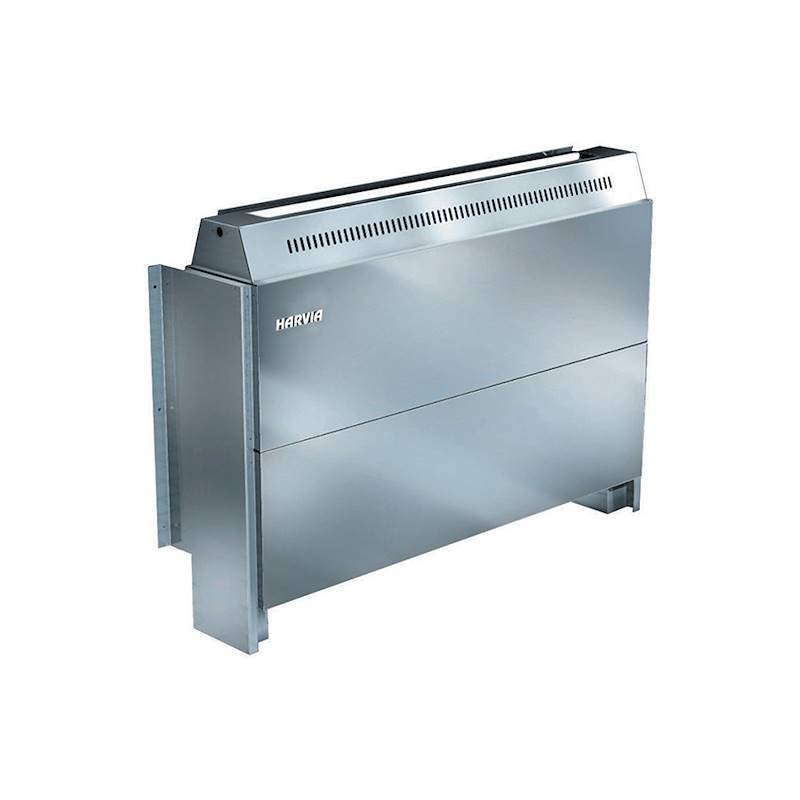

A heater behind the benches.
HARVIA Hidden Heater is a practical heater requiring very little space. It is mounted behind the benches and is therefore very well-suited for community saunas. Standar accessories for Hidden Heater include a soapstone bowl and a flexible hose pipe. The heat remains comfortably even when water is conveyed to the heater little by little. The bowl is placed on the bench and water is poured into it. The hose pipe takes the water to the heater. This heater is designed for heavy-duty use and completely made of high-quality stainless steel.
The Hidden Heater is controlled by a separate control unit.

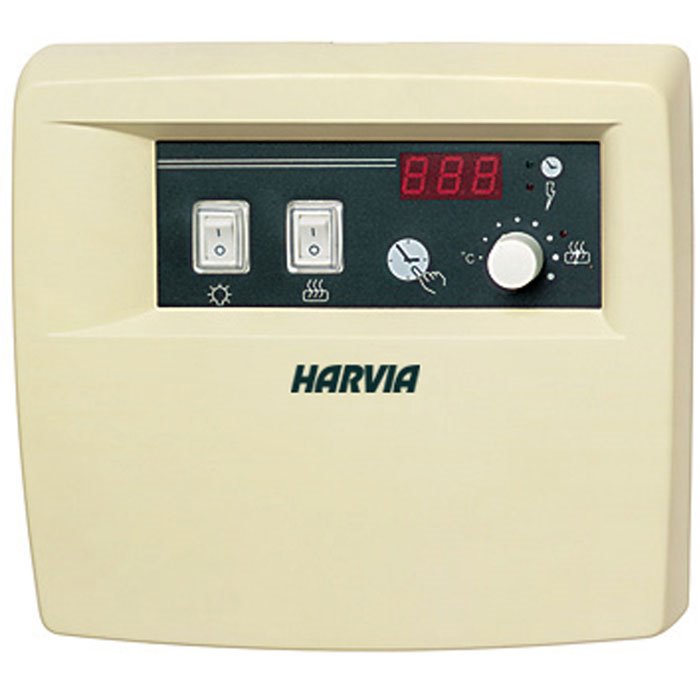

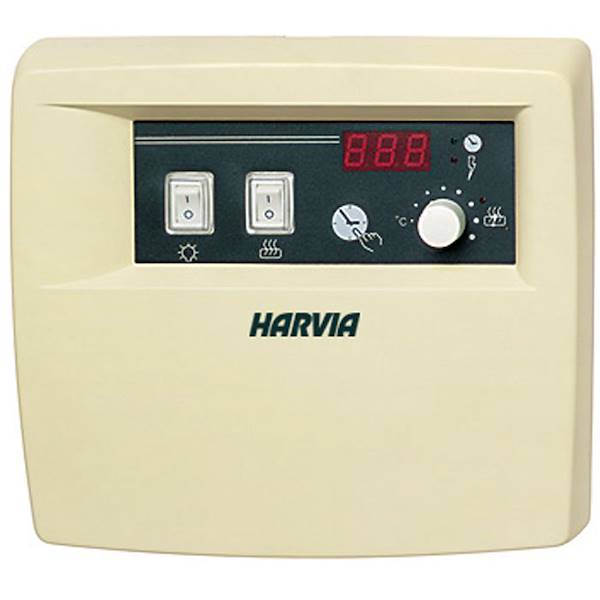

  • HARVIA mod. C150 (analogic control)

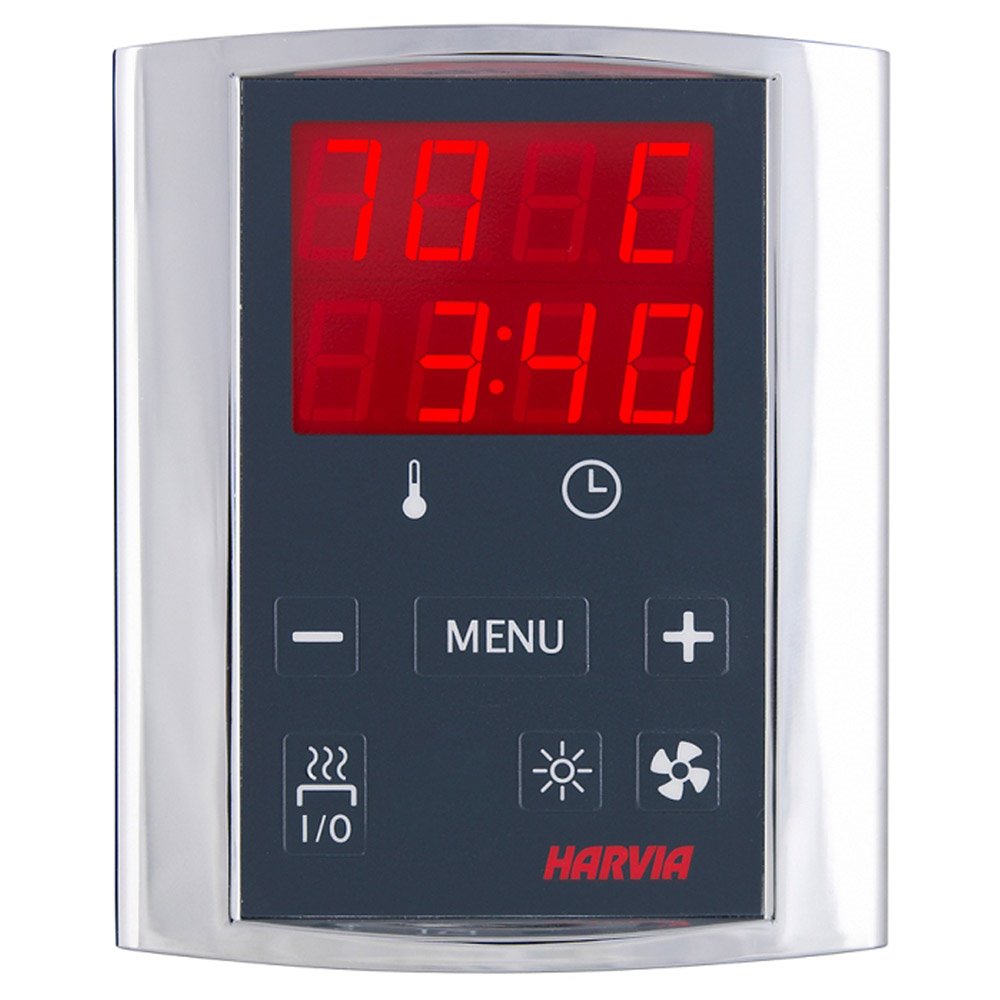

  • HARVIA mod. Griffin CG170 (digital control)

Hidden Heater models HH6 (6.0 Kw.- 400V), HH9 (9.0 Kw. - 400V) and HH12 (12.0 Kw. - 400V).
For PRIVATE and COMMERCIAL saunas

  The supply includes:

  • Heater HARVIA mod. Hidden Heater HH __ - STEEL.

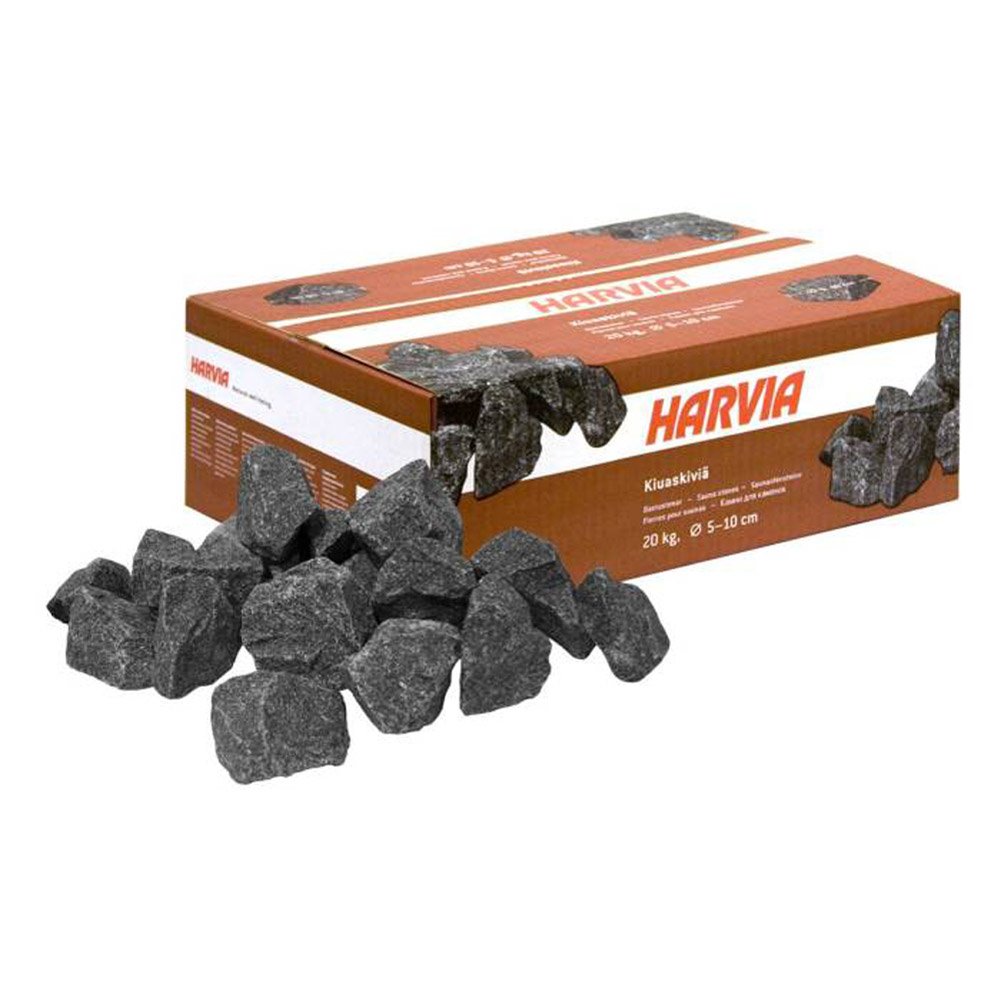

  • 20 Kg. sauna stones.
  • Soapstone bowl and a flexible hose pipe.
  • Instructions for installation ad use of electric sauna heater.
  • CE Certification of Conformity.

Technical data:

Heater
model
Power
Kw.
Electric
rate
Reccomended
sauna room size
min. > max.
Minimum sauna
room heigh
(mm)
Heater dimensions (mm)
and weight (empty - Kg.)
Stone capacity
max (Kg.)
HH6 6.0 Kw 400V 6.0 - 10.0 m3 2100 L. 1175 x W. 290 x H. 830 - 33 Kg. 15 Kg.
HH9 9.0 Kw 400V 10.0 - 14.0 m3 2100 L. 1175 x W. 290 x H. 830 - 33 Kg. 15 Kg.
HH12 12.0 Kw 400V 12.0 - 17.0 m3 2100 L. 1175 x W. 290 x H. 830 - 33 Kg. 15 Kg.
