Sauna and steam bath equipments > Steamer SS20/SS20A
(little sauna steamer - Finnish high quality and technology)
More humidity to your sauna.

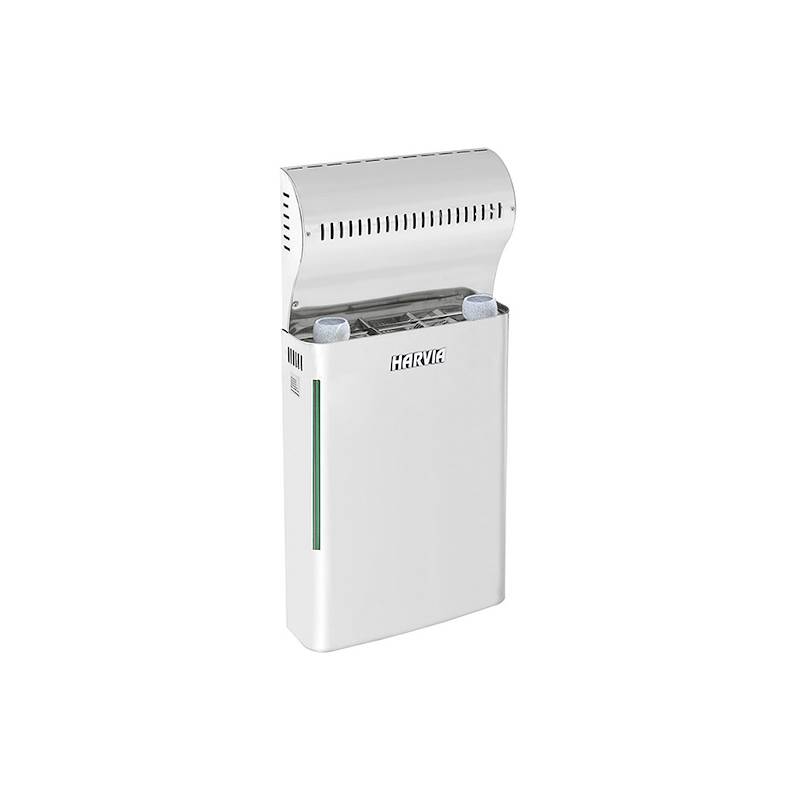

HARVIA Sauna Steamer is an independent additional unit for a normal electric heater, creating a softer and more humid sauna bath.
It is safe and easy to use the
Sauna Steamer. Fill the steamer’s water tank and turn the steamer on. It takes about 10 minutes for the steam to start to form. If you want to have high humidity in the sauna atmosphere, the temperature must be kept low. The steamer can also be fitted to an existing sauna.
Steamer model
SS20. Automatic filling of the water tank comes as standard with the model
SS20A.
For automatic models, water supply with shut-off valve is needed.
For PRIVATE and COMMERCIAL saunas
Technical data:
| Model |
Output
Kw. |
Electric rate |
Steam output
capacity - Kg./h |
Dimensions (mm) and weight
water resevoir empty (Kg.) |
Water reservoir
capacity (litres) |
| Steamer SS20 |
2.0 Kw |
230V |
2,5 |
W. 340 x D. 95 x H. 680 - 6 Kg. |
5,5 L. |
Steamer SS20A
automatic filling |
2.0 Kw |
230V |
2,5 |
W. 340 x D. 95 x H. 680 - 6 Kg. |
5,5 L. |
| Modello |
Potenza
Kw. |
Alimentazione
elettrica |
Cubatura bagno turco
min. > max. |
Produzione
vapore
Kg./ora |
Dimensioni (mm) e peso
del generatore vapore a vuoto (Kg.) |
Capacità serbatoio
litri/acqua |
| HGS45M |
4.5 Kw |
230/400V |
2.0 - 7.0 m3 |
5,5 |
L. 520 x P. 196 x H. 411 - 11 Kg. |
3 litri |
| HGS60M |
5.7 Kw |
230/400V |
3.5 - 11.0 m3 |
7,6 |
L. 520 x P. 196 x H. 411 - 11 Kg. |
3 litri |
| HGS90M |
9.0 Kw |
400V |
9.0 - 17.0 m3 |
12 |
L. 520 x P. 196 x H. 411 - 11 Kg. |
3 litri |
| HGS11M |
10.8 Kw |
400V |
15.0 - 21.0 m3 |
14,6 |
L. 520 x P. 196 x H. 411 - 11 Kg. |
3 litri |
